[Cisco] 패스워드 변경, 시스템 기록 ( Common Command result )

---

Cisco Network

  이 글은 단순히 시스템에 접속하여 간단한 명령어의 결과값을 좀 기록할 필요가 있어 기록하는 글이라. 개인적으로 보는 글이기 때문에 참조하는 글로는 적절하지 않을 수 있음.



환경 :

- Cisco L2 Switch SSH Connection ConsoleView Setting

- Privilege 15 Account SSH Connection

---



1. Command - ?

command "?"을 입력했을 때 나타나는 화면이다. 대략 지원되는 명령어가 display된다.

Switch#?
Exec commands:
  <1-99>           Session number to resume
  access-enable    Create a temporary Access-List entry
  access-profile   Apply user-profile to interface
  access-template  Create a temporary Access-List entry
  ap               Global access points commands
  archive          manage archive files
  authentication   Authentication options for eEdge
  beep             Blocks Extensible Exchange Protocol commands
  bulkstat         Bulkstat exec commands
  call-home        Call-Home commands
  cd               Change current directory
  clear            Reset functions
  clock            Manage the system clock
  cns              CNS agents
  codecov          request cflow command
  configure        Enter configuration mode
  connect          Open a terminal connection
  copy             Copy from one file to another
  crypto           Encryption related commands.
  cts              Cisco Trusted Security Exec Commands
  debug            Debugging functions (see also 'undebug')
  delete           Delete a file
  device           device classifier
  diagnostic       Diagnostic commands
  dir              List files on a filesystem
  disable          Turn off privileged commands
  disconnect       Disconnect an existing network connection
  do-exec          Mode-independent "do-exec" prefix support
  dot1x            IEEE 802.1X Exec Commands
  eap              EAP Exec Commands
  enable           Turn on privileged commands
  erase            Erase a filesystem
  event            Event related commands
  exit             Exit from the EXEC
  format           Format a filesystem
  fsck             Fsck a filesystem
  help             Description of the interactive help system
  ip               Global IP commands
  issu             issu commands
  license          Configure license.
  lock             Lock the terminal
  logging          Handles logging operations
  login            Log in as a particular user
  logout           Exit from the EXEC
  macro            Exec level macro commands
  mediatrace       Mediatrace Commands
  mkdir            Create new directory
  monitor          Monitoring different system events
  more             Display the contents of a file
  mrinfo           Request neighbor and version information from a multicast router
  msp              Exec command to attach profile to flow
  mstat            Show statistics after multiple multicast traceroutes
  mtrace           Trace reverse multicast path from destination to source
  name-connection  Name an existing network connection
  no               Disable debugging functions
  ping             Send echo messages
  power            Internal PS/RPS/SPS exec commands
  pwd              Display current working directory
  redundancy       Redundancy Facility (RF) exec commands
  release          Release a resource
  reload           Halt and perform a cold restart
  rename           Rename a file
  renew            Renew a resource
  resume           Resume an active network connection
  rmdir            Remove existing directory
  routing-context  Routing Context
  rsh              Execute a remote command
  send             Send a message to other tty lines
  session          Connect to a member
  set              Set system parameter (not config)
  setup            Run the SETUP command facility
  show             Show running system information
  software         Software commands
  spec-file        format spec file commands
  ssh              Open a secure shell client connection
  stack-mac        Stack-Mac commands
  stack-power      Stack power commands
  switch            Switch related paramtes
  systat           Display information about terminal lines
  tclquit          Quit Tool Command Language shell
  tclsh            Tool Command Language shell
  telnet           Open a telnet connection
  terminal         Set terminal line parameters
  test             Test subsystems, memory, and interfaces
  traceroute       Trace route to destination
  tunnel           Open a tunnel connection
  udld             UDLD protocol commands
  undebug          Disable debugging functions (see also 'debug')
  upgrade          Upgrade commands
  verify           Verify a file
  vtp              Configure global VTP state
  where            List active connections
  wireless         Configure wireless parameters
  write            Write running configuration to memory, network, or terminal












2. Command - show running-config

현재 설정된 설정을 보는 명령어이다.

Switch#show running-config
Building configuration...

Current configuration : 4322 bytes
!
! Last configuration change at 05:55:33 UTC Mon Apr 18 2022 by admin
!
version 15.2
no service pad
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
service compress-config
!
hostname Switch
!
boot-start-marker
boot-end-marker
!
!
vrf definition Mgmt-vrf
 !
 address-family ipv4
 exit-address-family
 !
 address-family ipv6
 exit-address-family
!
enable secret 5 $1$09c0$gReHWethu5AiMd.ro77On/
enable password snowfox
!
username admin privilege 15 password 0 dsm1234
username ciscoadm password 0 dsm1234
username sac password 0 1234
no aaa new-model
switch 1 provision ws-c3850-24t
!
!
!
!
!
!
no ip domain-lookup
!
!
vtp mode transparent
!
!
diagnostic bootup level minimal
spanning-tree mode pvst
spanning-tree extend system-id
hw-switch switch 1 logging onboard message level 3
!
redundancy
 mode sso
!
!
vlan 10
 name 10
!
ip ssh authentication-retries 5
ip ssh version 2
!
class-map match-any non-client-nrt-class
!
policy-map port_child_policy
 class non-client-nrt-class
  bandwidth remaining ratio 10
!
!
!
!
!
!
!
!
!
!
!
!
!
!
interface GigabitEthernet0/0
 vrf forwarding Mgmt-vrf
 ip address 192.168.1.201 255.255.252.0
 negotiation auto
!
interface GigabitEthernet1/0/1
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/2
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/3
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/4
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/5
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/6
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/7
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/8
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/9
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/10
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/11
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/12
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/13
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/14
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/15
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/16
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/17
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/18
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/19
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/20
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/21
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/22
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/23
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/0/24
 switchport access vlan 10
 switchport mode access
!
interface GigabitEthernet1/1/1
!
interface GigabitEthernet1/1/2
!
interface GigabitEthernet1/1/3
!
interface GigabitEthernet1/1/4
!
interface TenGigabitEthernet1/1/1
!
interface TenGigabitEthernet1/1/2
!
interface TenGigabitEthernet1/1/3
!
interface TenGigabitEthernet1/1/4
!
interface Vlan1
 no ip address
!
interface Vlan10
 no ip address
!
ip default-gateway 192.168.0.1
ip forward-protocol nd
ip http server
ip http authentication local
ip http secure-server
!
!
!
snmp-server community public RO
!
!
line con 0
 logging synchronous
 stopbits 1
line aux 0
 stopbits 1
line vty 0 4
 password dsm1234
 login local
 transport input telnet ssh
line vty 5 15
 password cisco
 login
!
wsma agent exec
 profile httplistener
 profile httpslistener
!
wsma agent config
 profile httplistener
 profile httpslistener
!
wsma agent filesys
 profile httplistener
 profile httpslistener
!
wsma agent notify
 profile httplistener
 profile httpslistener
!
!
wsma profile listener httplistener
 transport http
!
wsma profile listener httpslistener
 transport https
!
ap group default-group
end











3. Command - conf t

command "conf t"을 입력했을 때 나타나는 화면이고 설정 터미널에 진입하는 결과화면으로 보면 된다.

Switch#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Switch(config)#









4. Command - username {user} password {passwd}

유저를 특정(admin)하여 패스워드(white100)으로 변경하는 명령어인데 별다른 리턴값은 없다. 참고로 기존에 존재하는 유저라면 수정으로 진행이되고 계정이 없다면 유저가 추가되는 형태로 진행이 되는 명령어이다.

Switch(config)#username admin password white100
Switch(config)#
Switch(config)#
Switch(config)#username addddd password white1
Switch(config)#

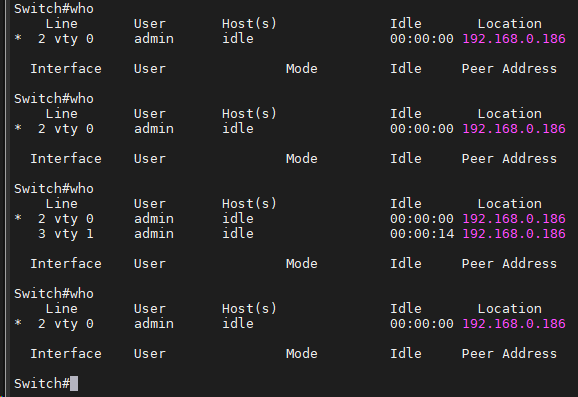

5. Command -  who

일반적인 linux에서 작동하는 who는 작동을 하는지 체크해보니 된다. 유닉스 기반에 커스텀한 OS라는 말이 맞는 것 같다(?)











6. Command - no username {user}

유저를 만들었다면 삭제하는 방법도 있는데 아래와 같이 "no username id"를 입력하면 confirm 메시지가 나오고 진행하면 삭제가 된다.

confrim 메시지, 엔터누르면 확인하는 것이니깐 엔터누르고 진행하면 된다.



---
